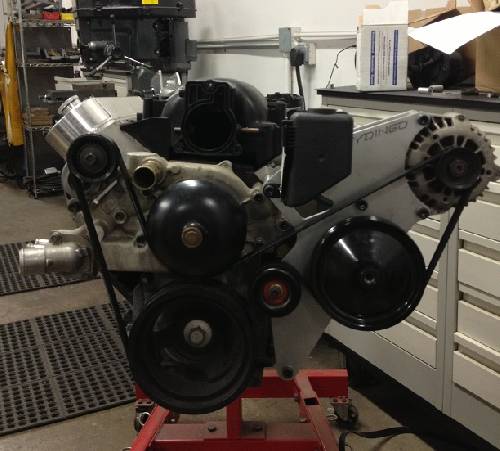

This new 3/8 6061-T6 billet aluminum alternator/power steering bracket uses TYPE II powers steering pumps commonly used on LS1 Corvette and Camaro accessories.

Must use matching pulley for the pump. Corvette and Camaro use different diameter shafts.

Designed to be used with external reservoir for the power steering fluid, such as a 1997-2004 C5 Corvette.

This kit will fit using Corvette, Camaro, or LS Truck accessories- make your selection below.

When selecting your accessories- 2010 and newer Camaro uses the same as Vortec Truck, not Camaro accessories.

Grade 8 zinc coated bolts, stainless washers, 6061-T6 billet spacers, and additional pulley all included.

Type 2 power steering pumps with casting numbers 783 and 784 use a 0.660-inch shaft diameter.

INSTALLATION INSTRUCTIONS

97 and up Saginaw (TC) Type Corvette GM Part # 25960709

Pulley GM Part # 12568997

Reservoir GM Part # 26046502

Cap GM Part # 10317982

Return Hose GM Part # 15907878

Stub Pipe GM Part # 26006074

* Designed to fit 1998-2002 Camaro and 2000-2013 Truck LS Vortec Alternators. Will not fit Corvette, CTSV, or 2010 up Camaro Alternators.
