This is a new design billet aluminum alternator/power steering bracket for your 1997-2013 LSx engine with Truck accessories. This bracket will relocate and lower your alternator 1 1/2 inches below the top of an LS1 car intake manifold, and raises the power steering up for frame and steering clearance.

Machined from 3/8 thick 6061-T6 aircraft billet aluminum. If you are using the LS1 Truck style accessories and having hood clearance or frame and steering clearance issues- this is the solution.

This bracket has ample room to run tall sheet metal valve covers, and you can run camaro LS1 exhaust manifolds backwards for turbo applications.

Will fit with car or truck water pump. Excellent option for using truck accessories in an S10 or Tri-Fives.

This bracket is designed to be used with power steering pumps from 1990-1995 Chevrolet truck. Uses your existing truck or camaro alternator.

One kit includes two 3/8 billet aluminum 6061-T6 brackets, 6061-T6 billet aluminum spacers, stainless washers, and grade 8 allen bolts. Kit includes new lower pulley kit.

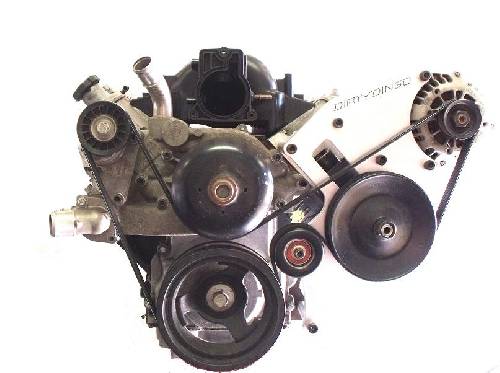

*This kit is for the ALT/PS only. Shown with our A/C bracket for reference.

* Designed to fit 1998-2002 Camaro and 2000-2013 Truck LS Vortec Alternators. Will not fit Corvette, CTSV, or 2010 up Camaro Alternators.
